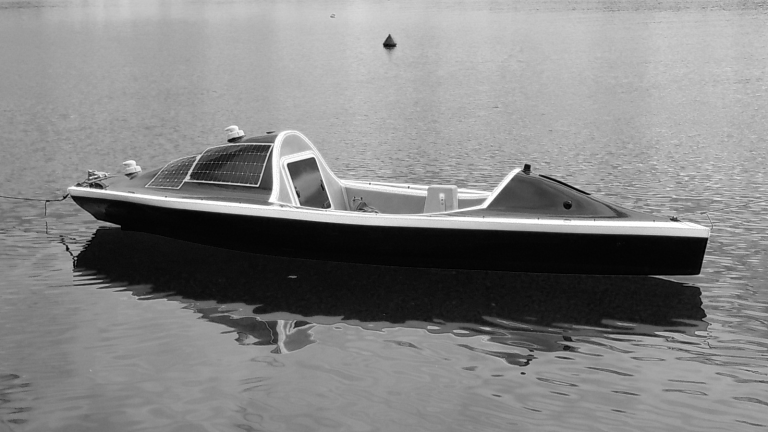

EQUINOXE

Caractéristiques / Characteristics:

  • Nom/Name: EQUINOXE
  • Type: embarcation trans-océanique, insubmersible et auto-redressable / trans-oceanic boat unsinkable and self-righting
  • Energie/Energy: propulsion humaine / human propulsion, bateau à pédales / pedal boat
  • Immatriculation/registration: LS G32194
  • Date de fabrication/Manufacturing date: 2019 - 2021
  • Longueur/length: 8m
  • Maître-bau/midship-beam: 2m
  • Tirant d'eau/draught: 0.80m
  • Poids à vide-unloaded weight/ poids en charge - loaded weight: 340kg / 800kg (dont lest/including lead-ballast 160kg)

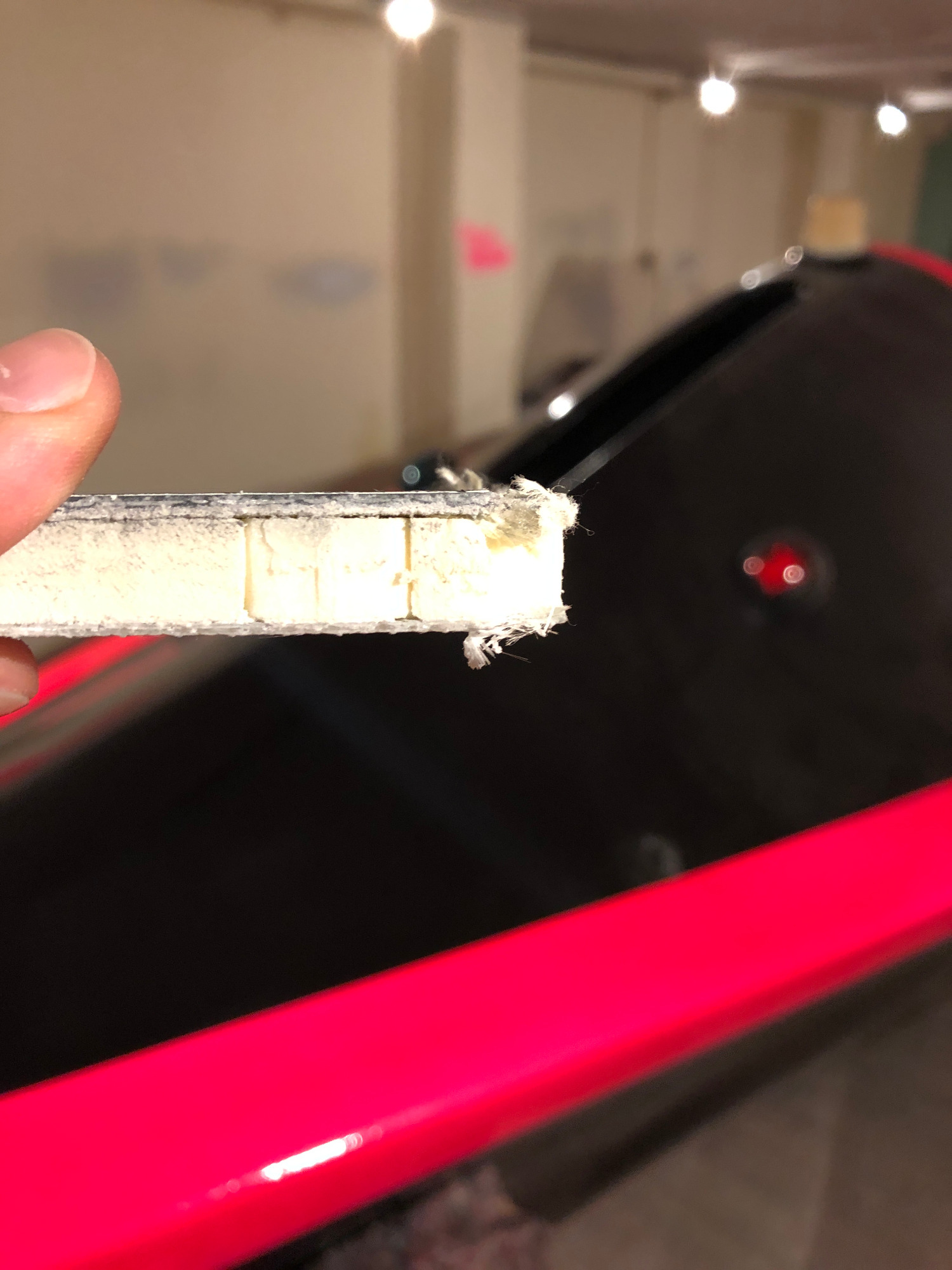

  • Matériau/Material: composite de type sandwich, Carbone/Kevlar, résine époxy - Sandwich type composite, Carbon/Kevlar, epoxy resin
  • Plan/design: C. Girard
  • Fabrication/Manufacturing: Girard / Drochon

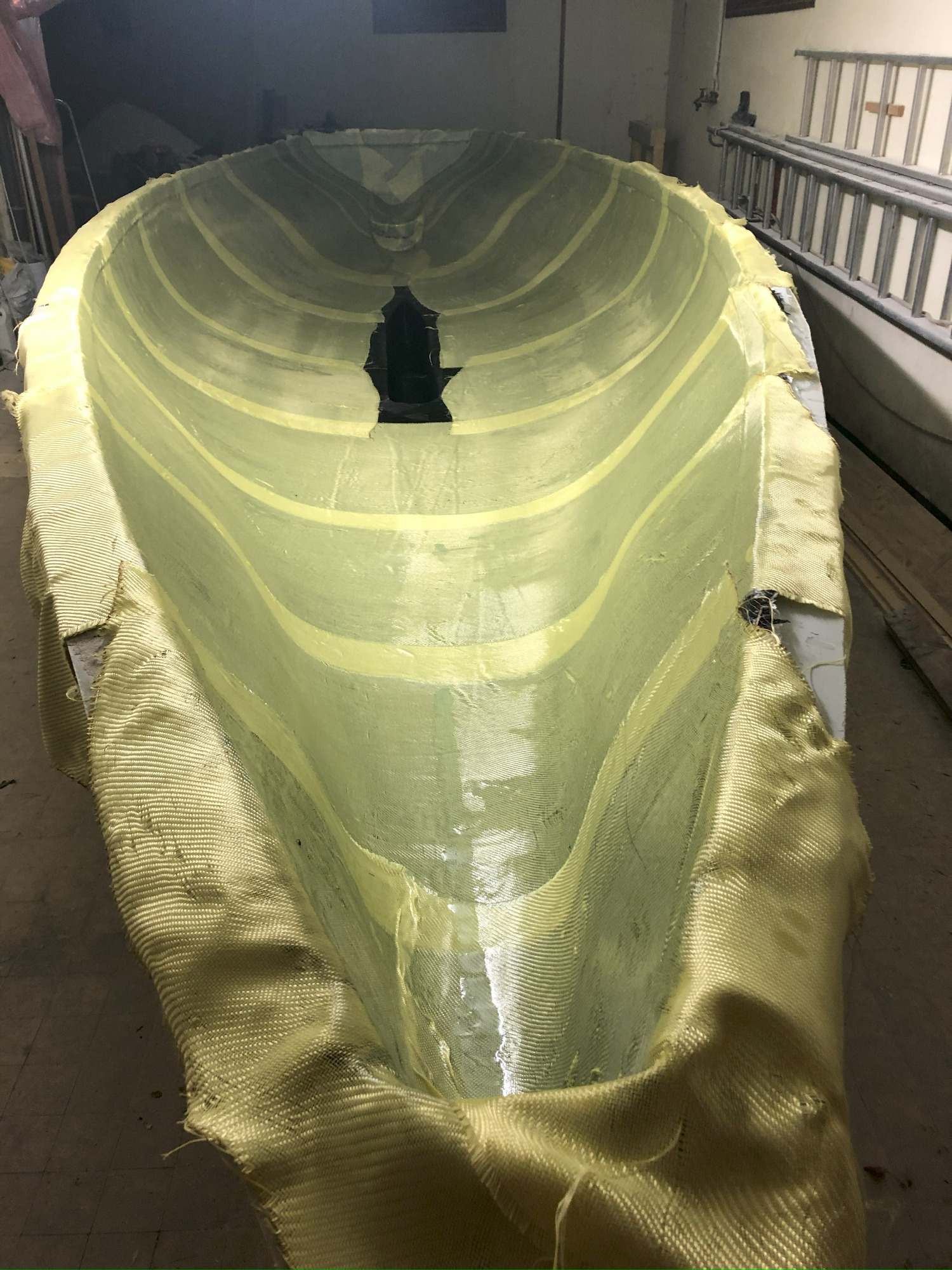

Etape 1 / Step 1

Fabrication de la coque / Hull Manufacturing

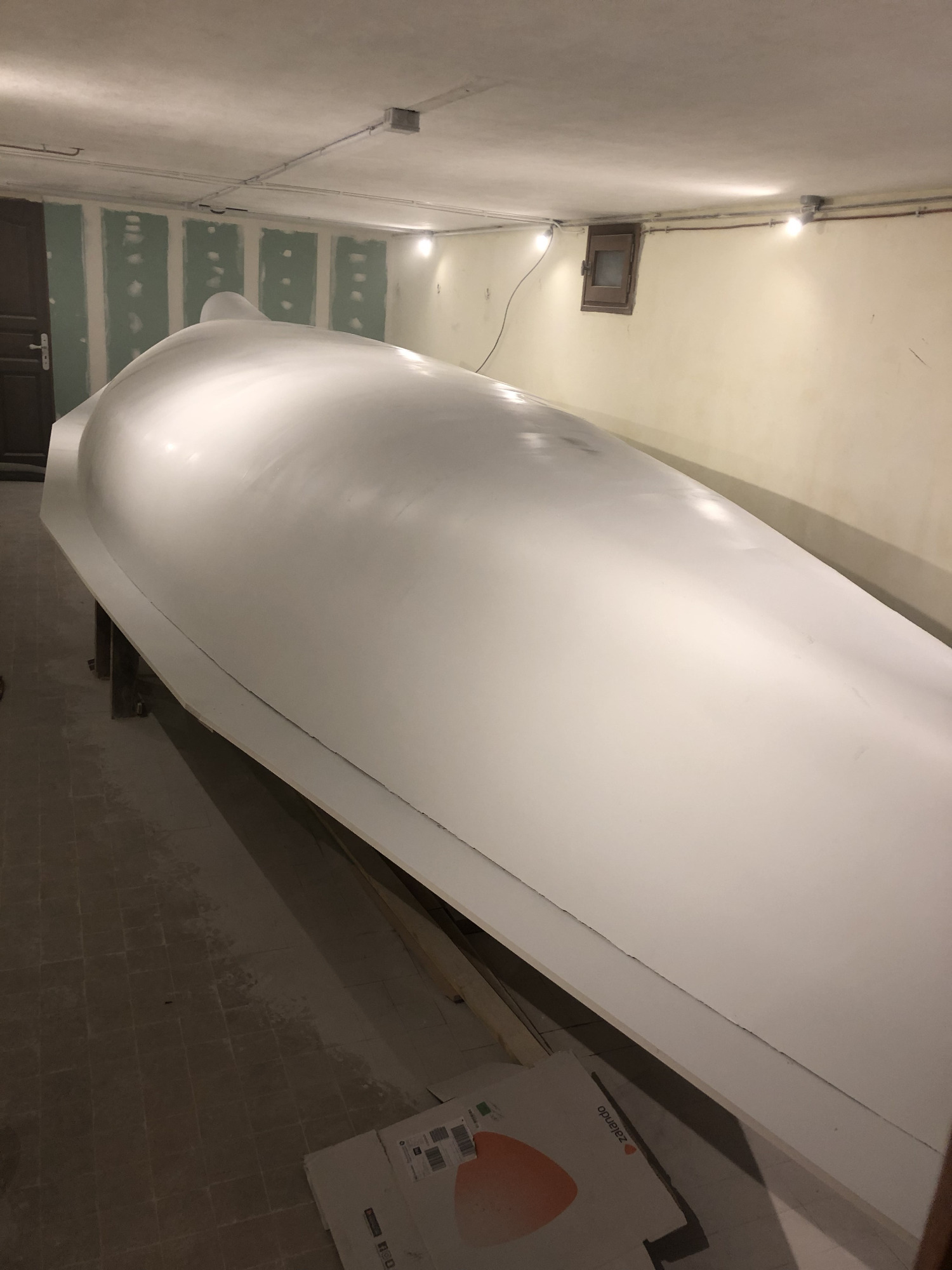

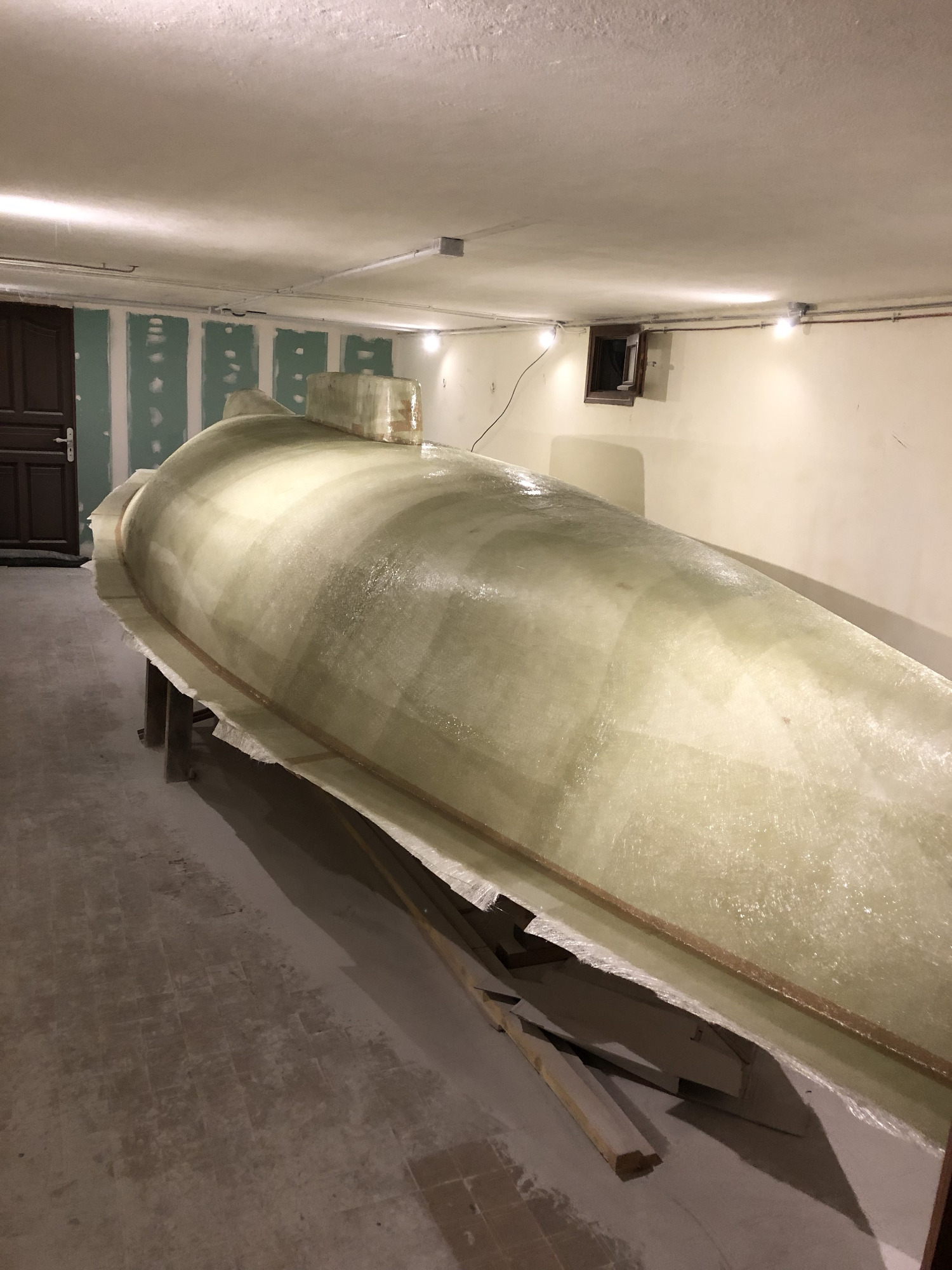

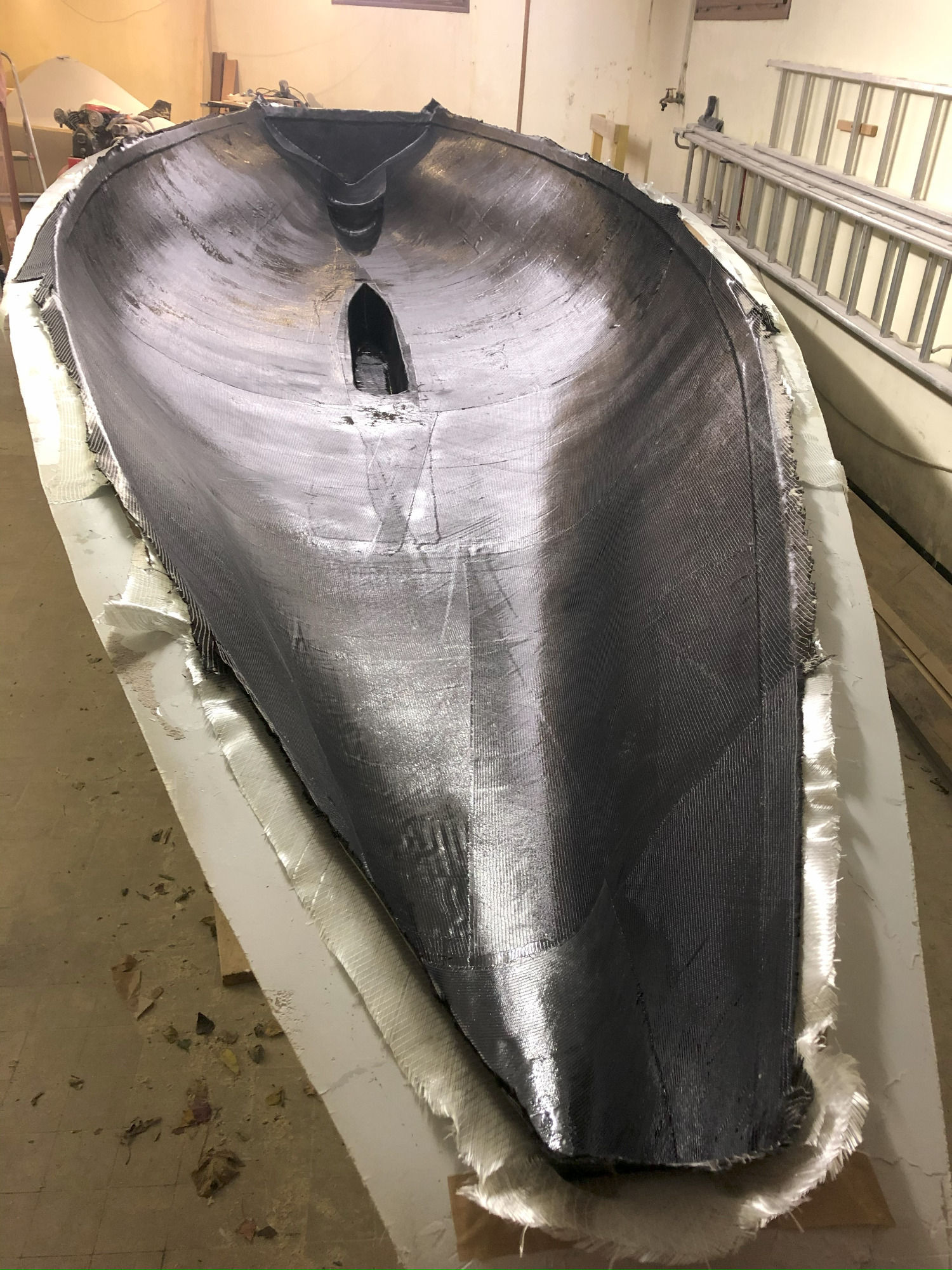

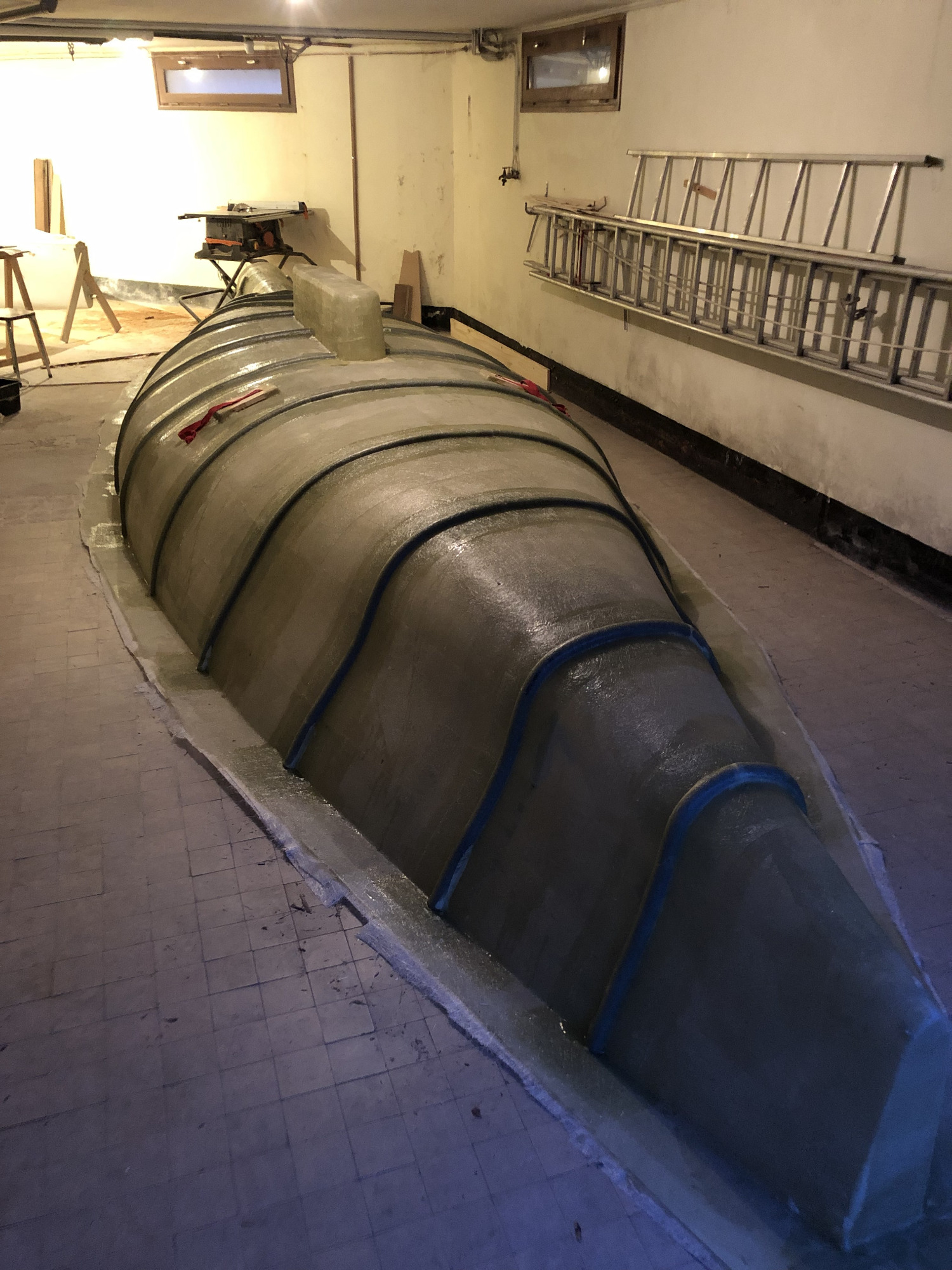

Fabrication d'un modèle en bois, puis d'un moule en fibre de verre et enfin la carène (partie inférieure de la coque du bateau) avec le matériau composite définitif.

We first made a wood model, then a mold with fiberglass and finally we made the hull (the lower part of the boat) with the final composite material.

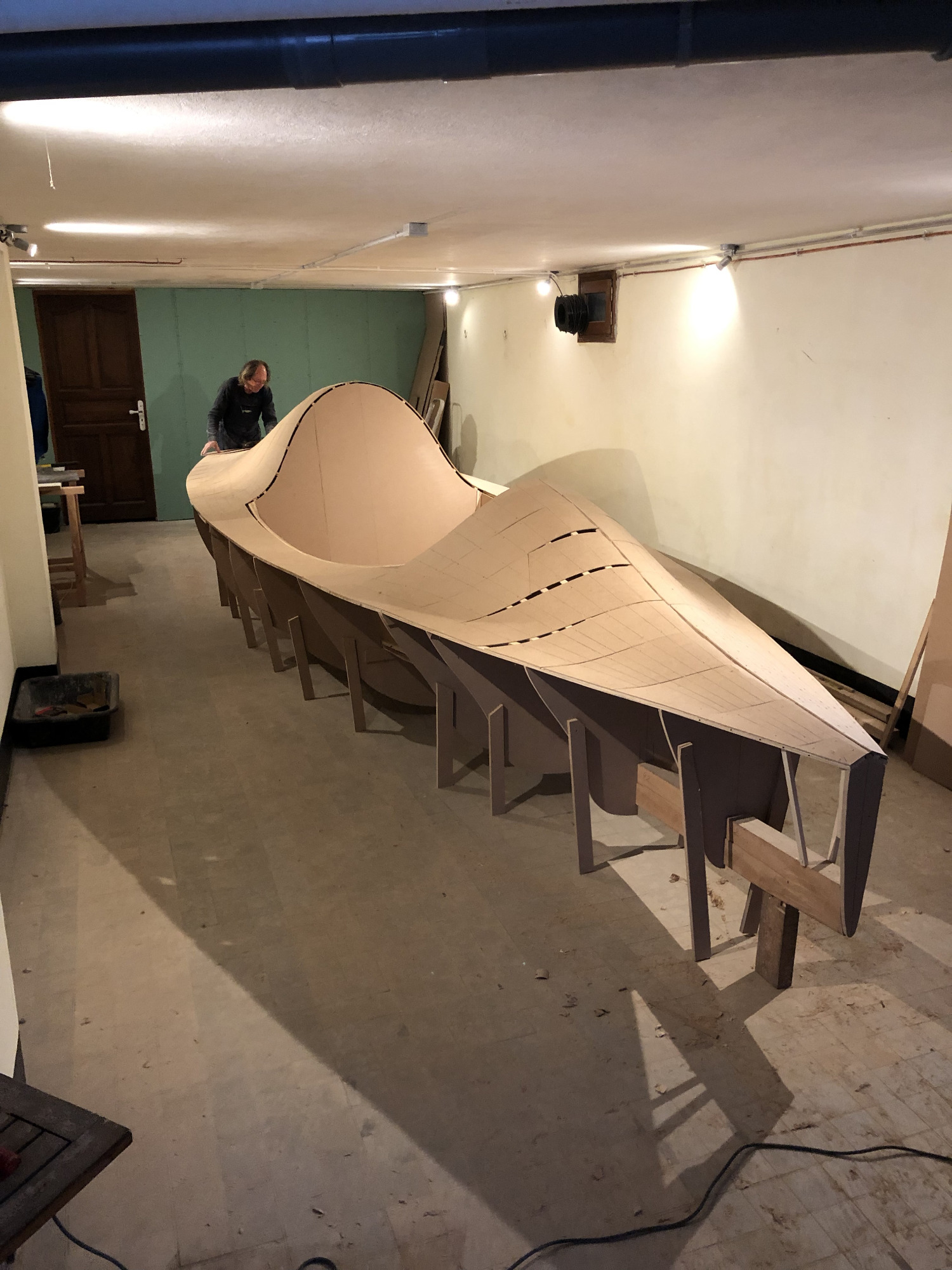

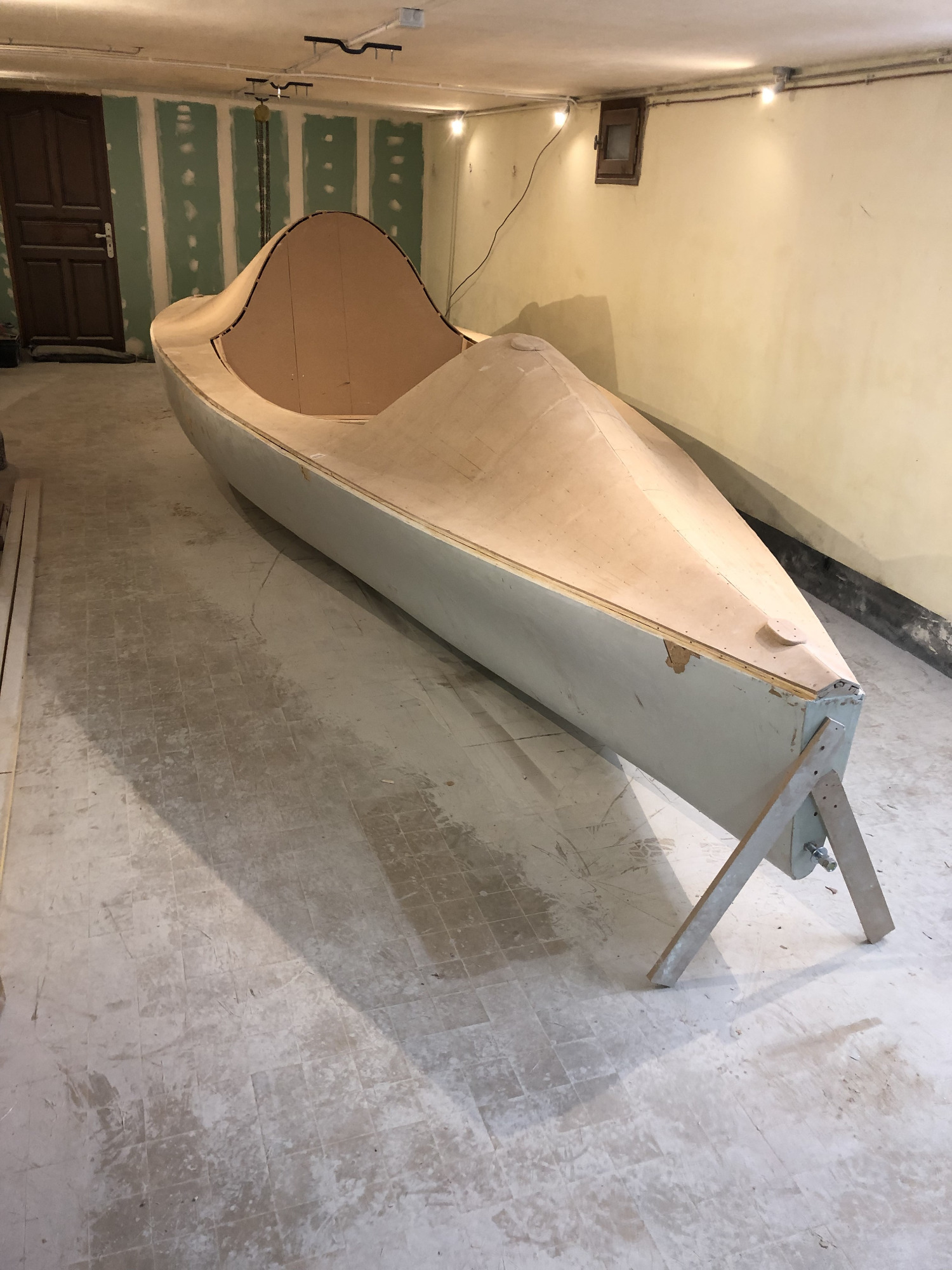

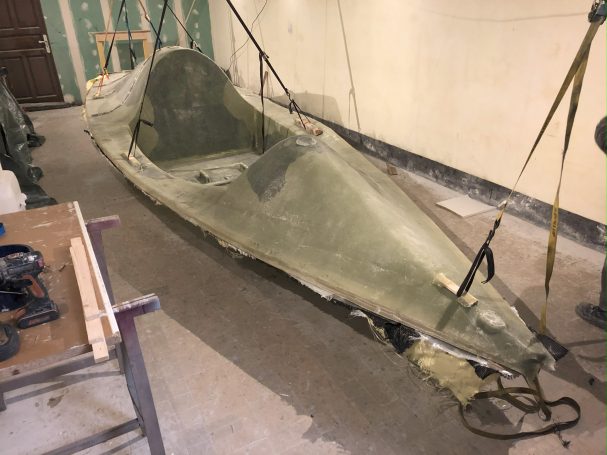

Etape 2 / Step 2

Fabrication du pont / manufacturing of the deck

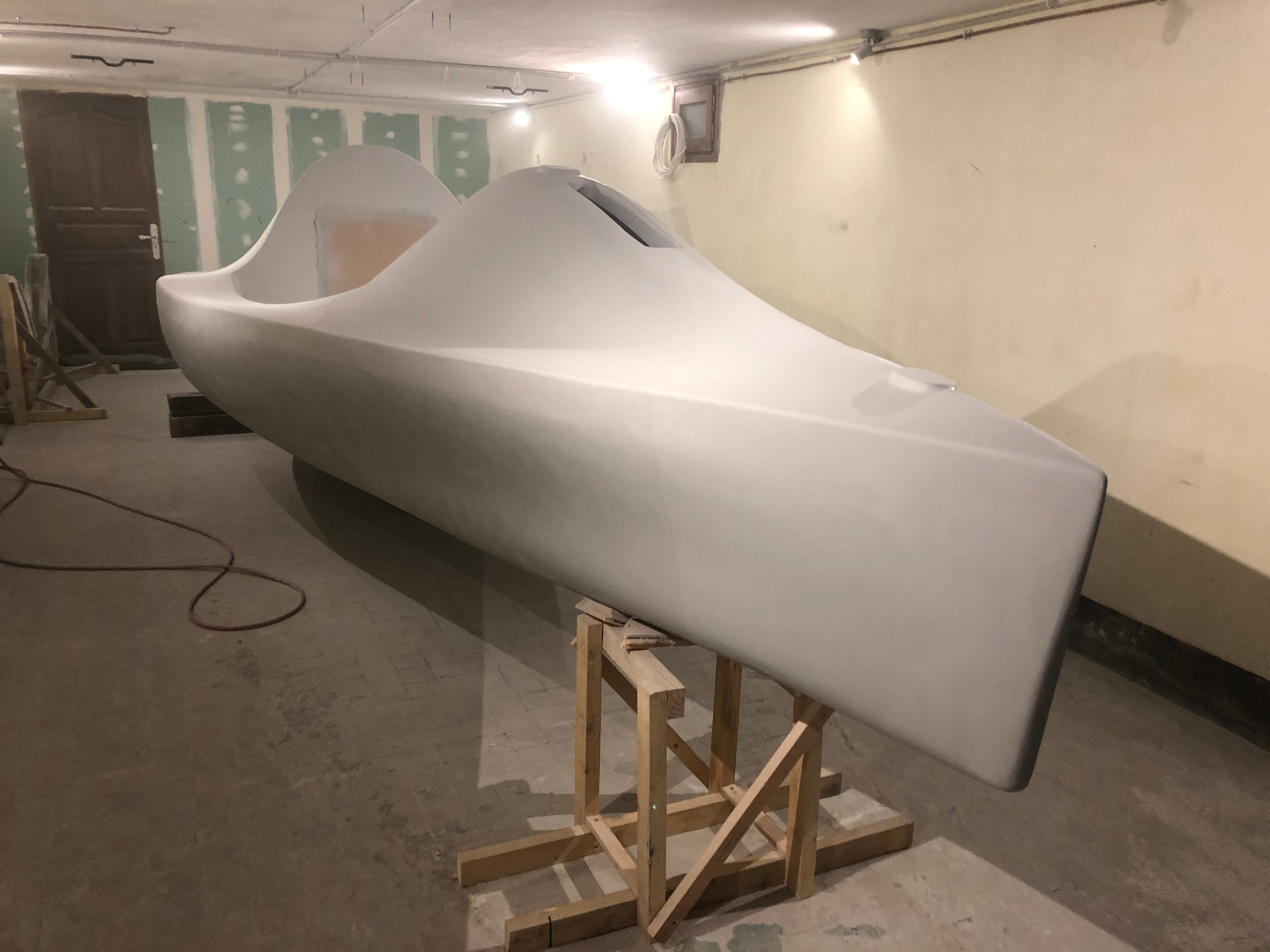

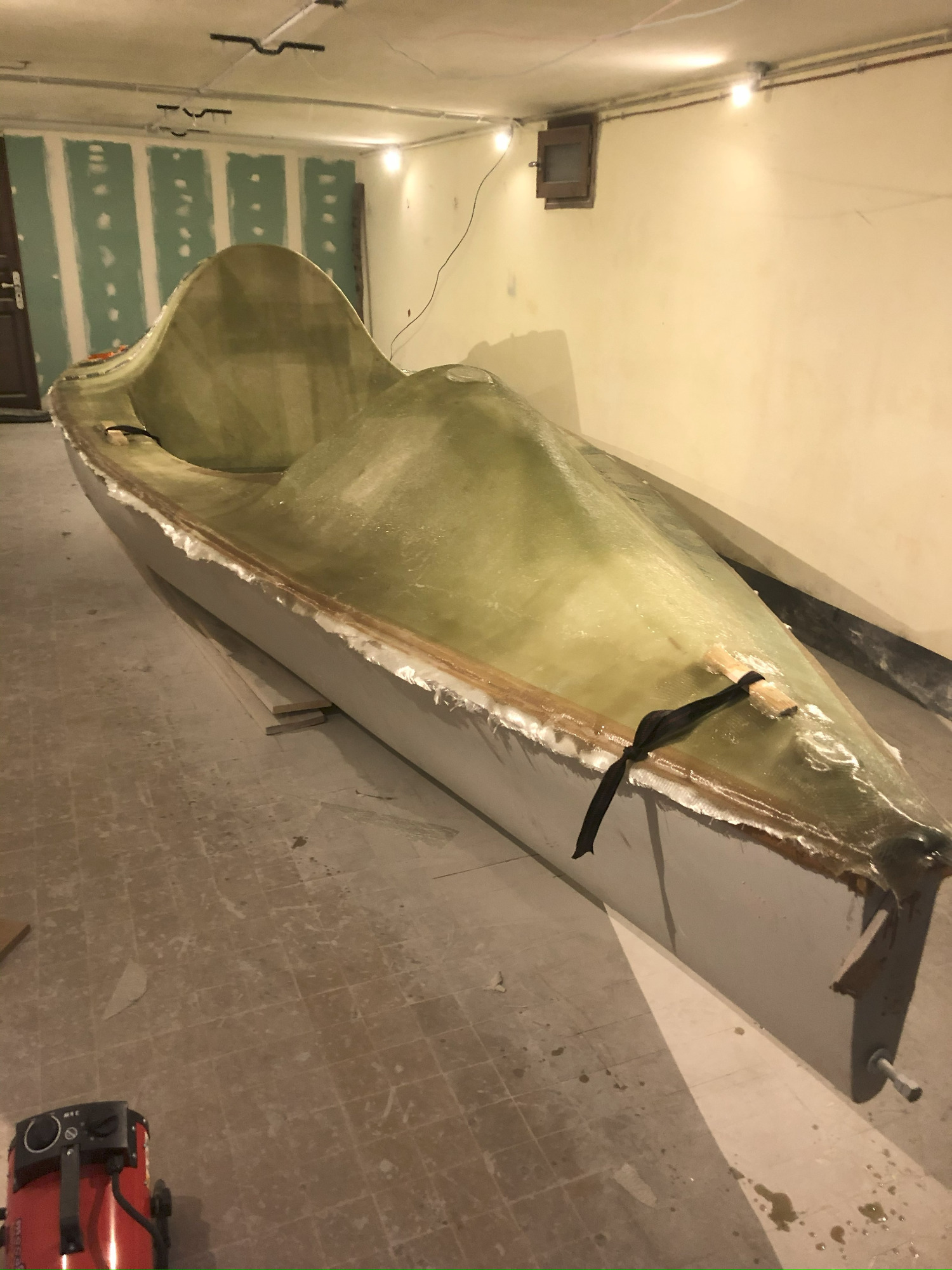

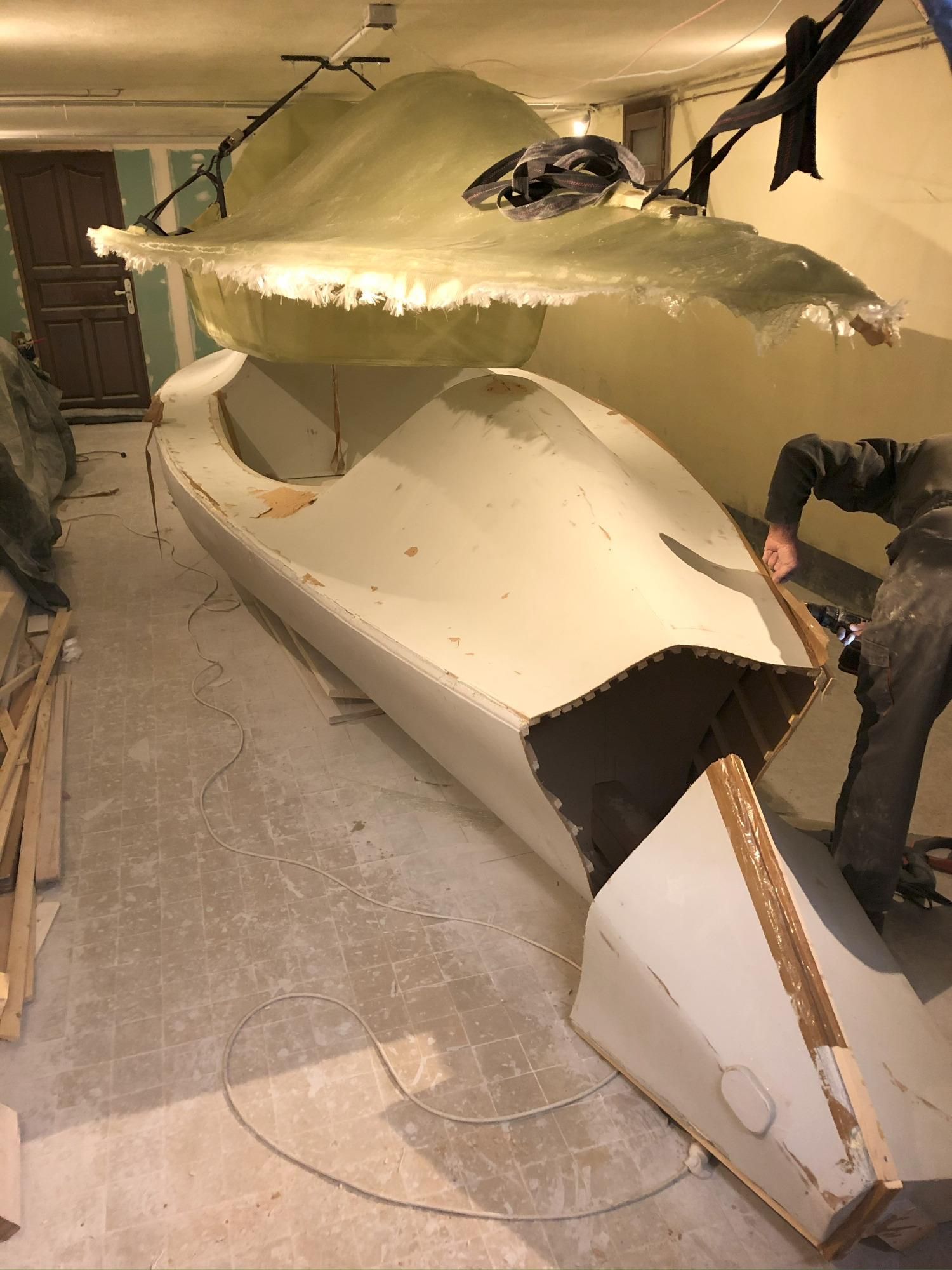

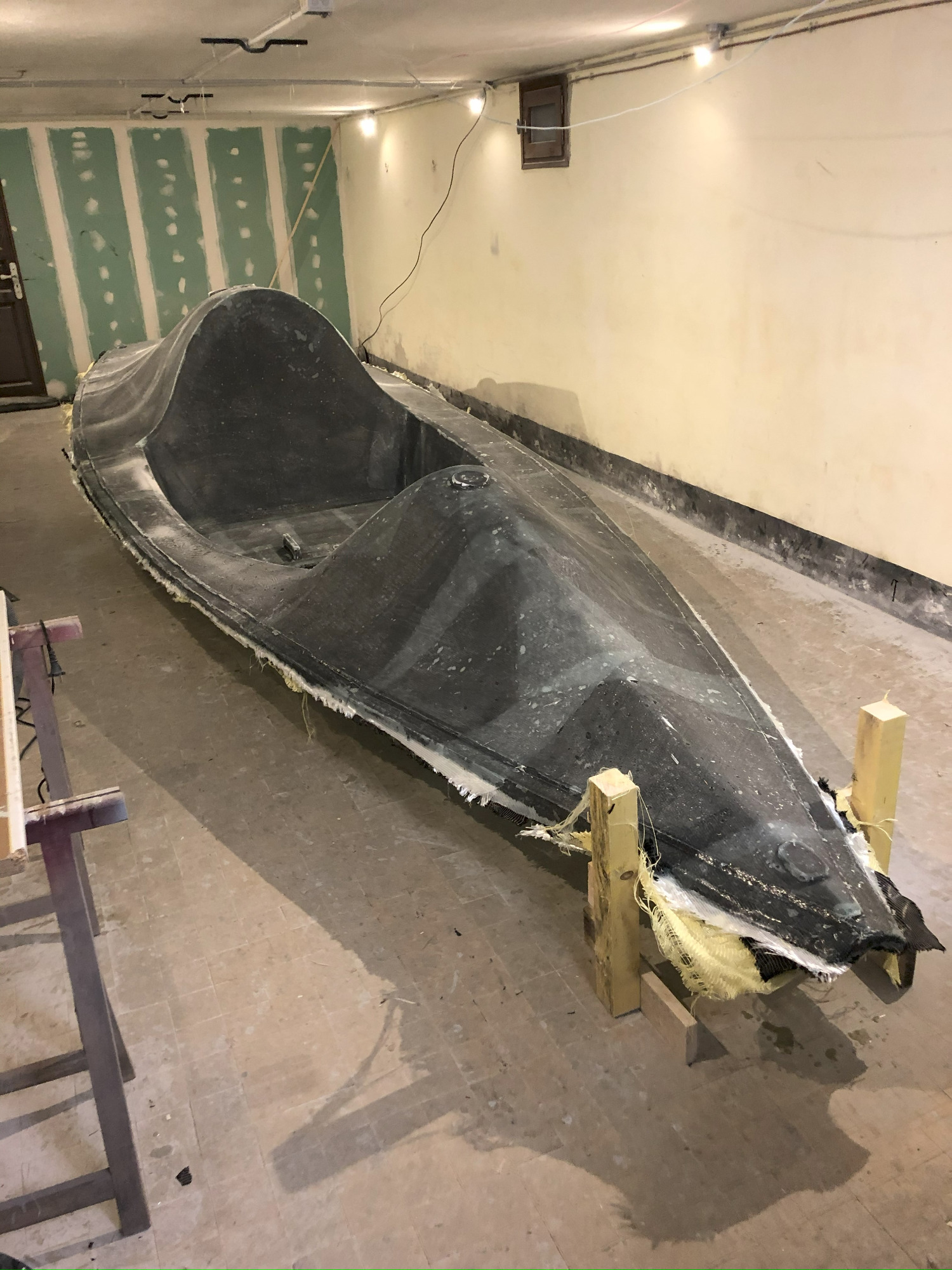

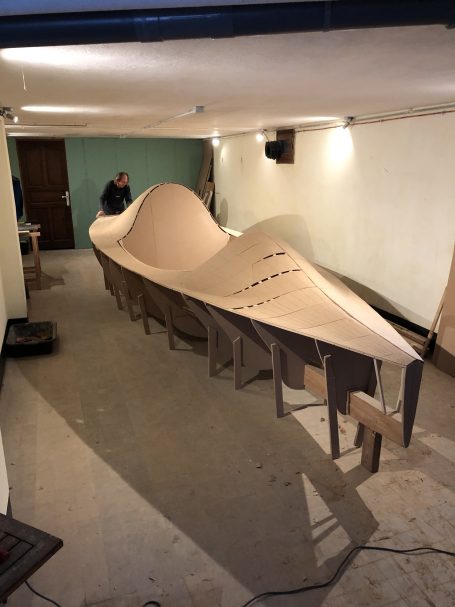

Comme pour la première partie de la coque, on fabrique un modèle en bois, puis un moule en fibre de verre, puis enfin le pont avec le matériau composite définitif. Puis on détruit modèles et moules..

Like for the first part of the hull, we make a wood model, then the modl in fiberglass, then finally the deck with the definitive composite material. After this we destroy and dispose of models and molds..

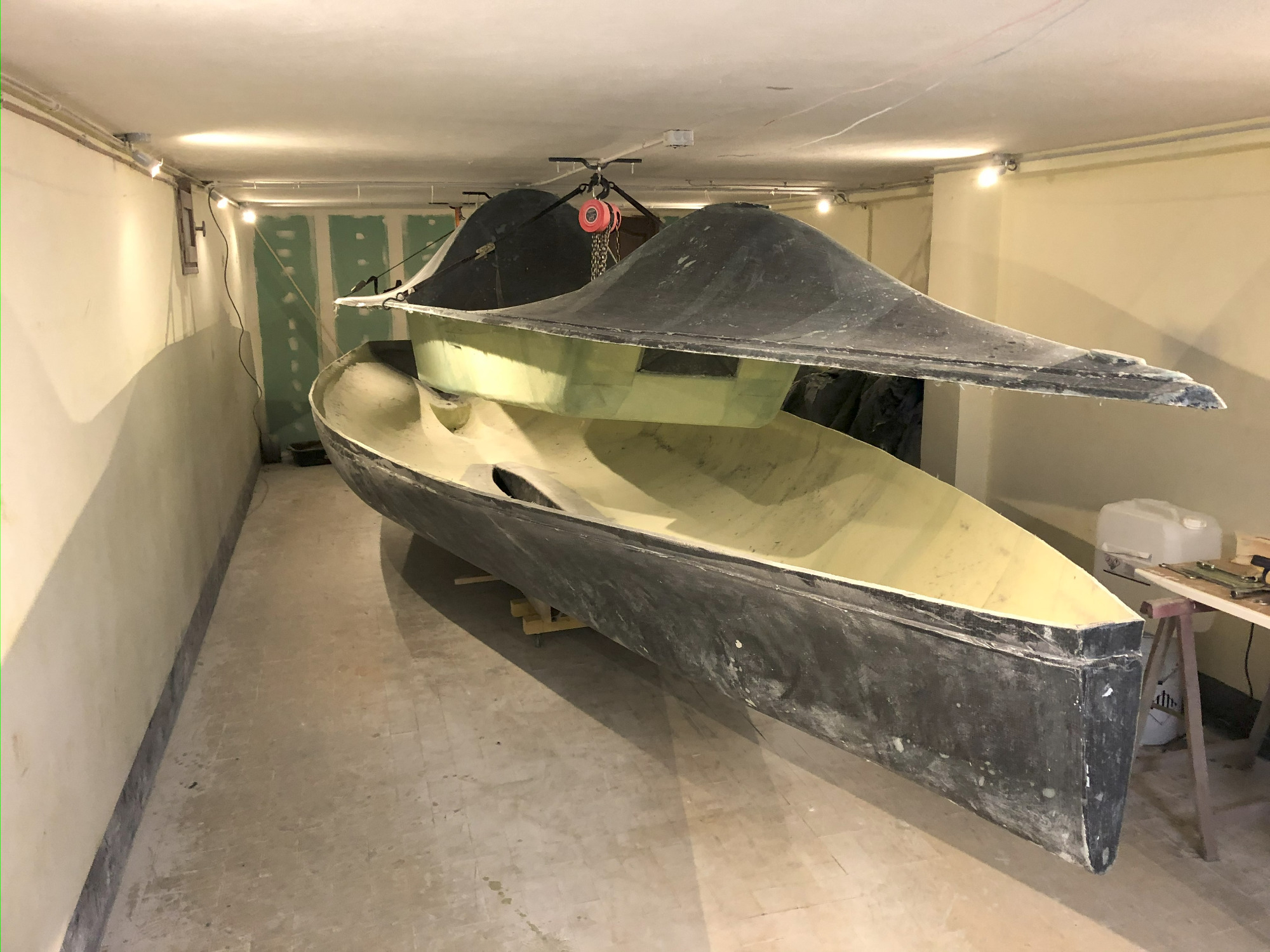

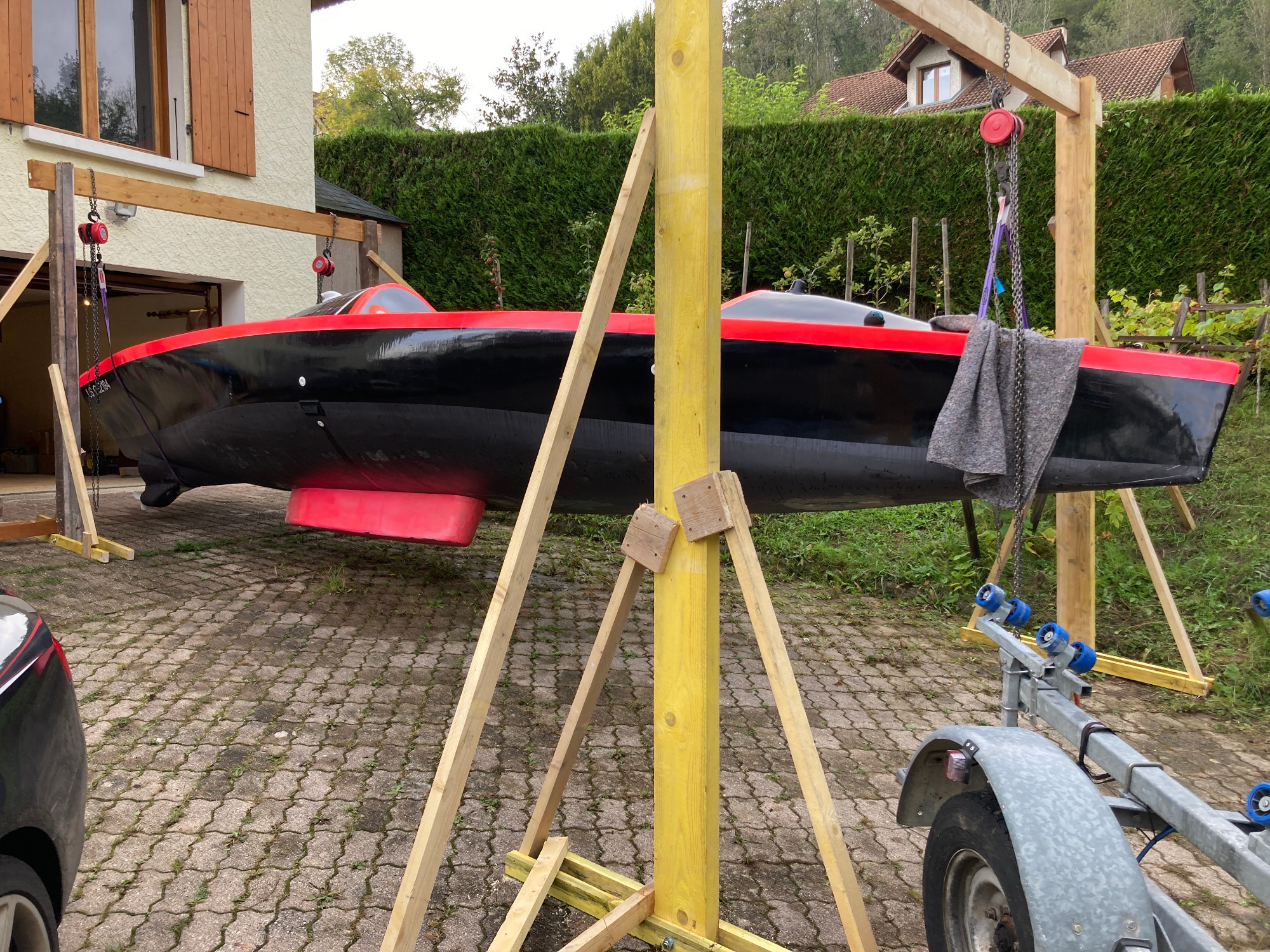

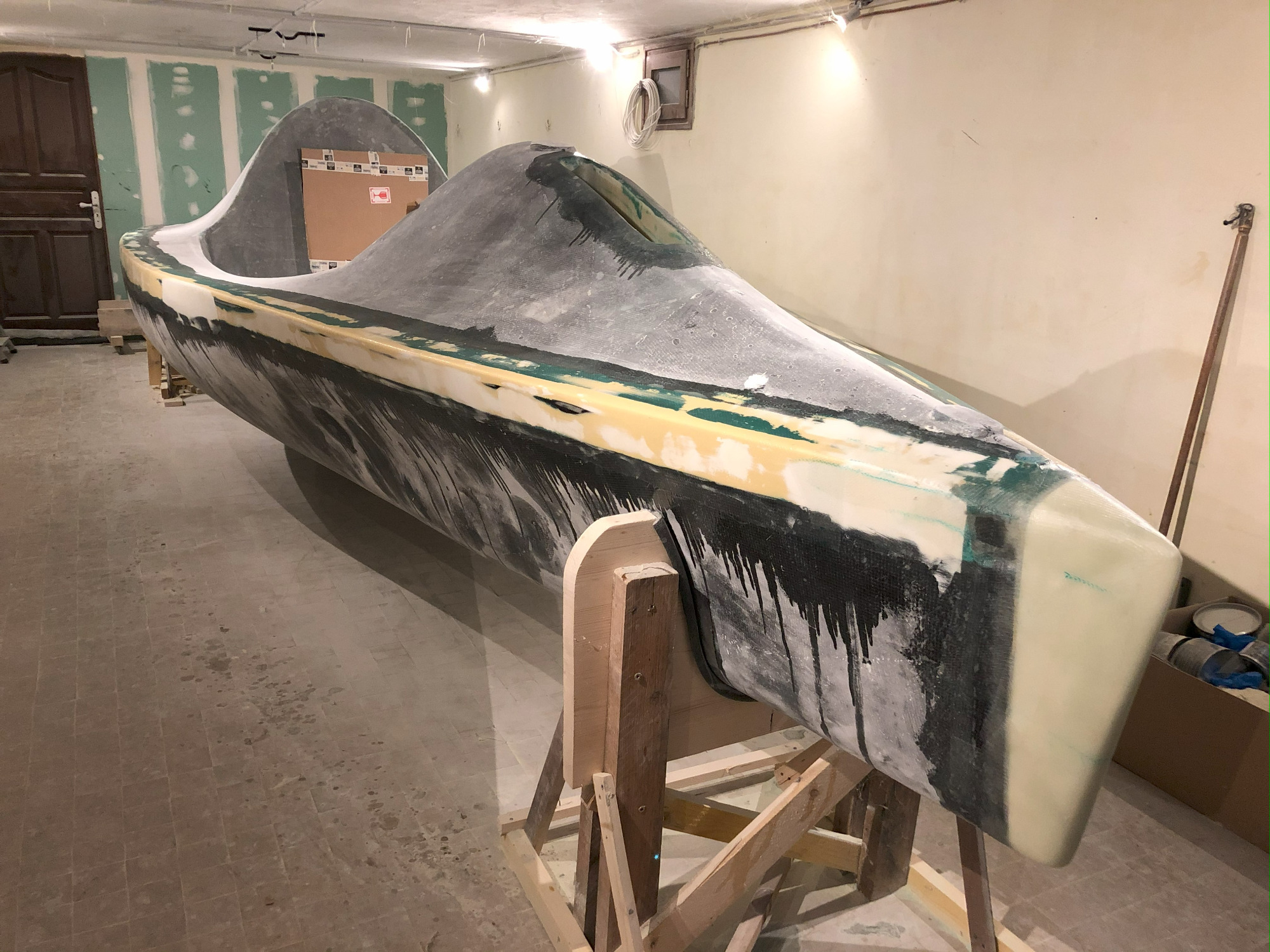

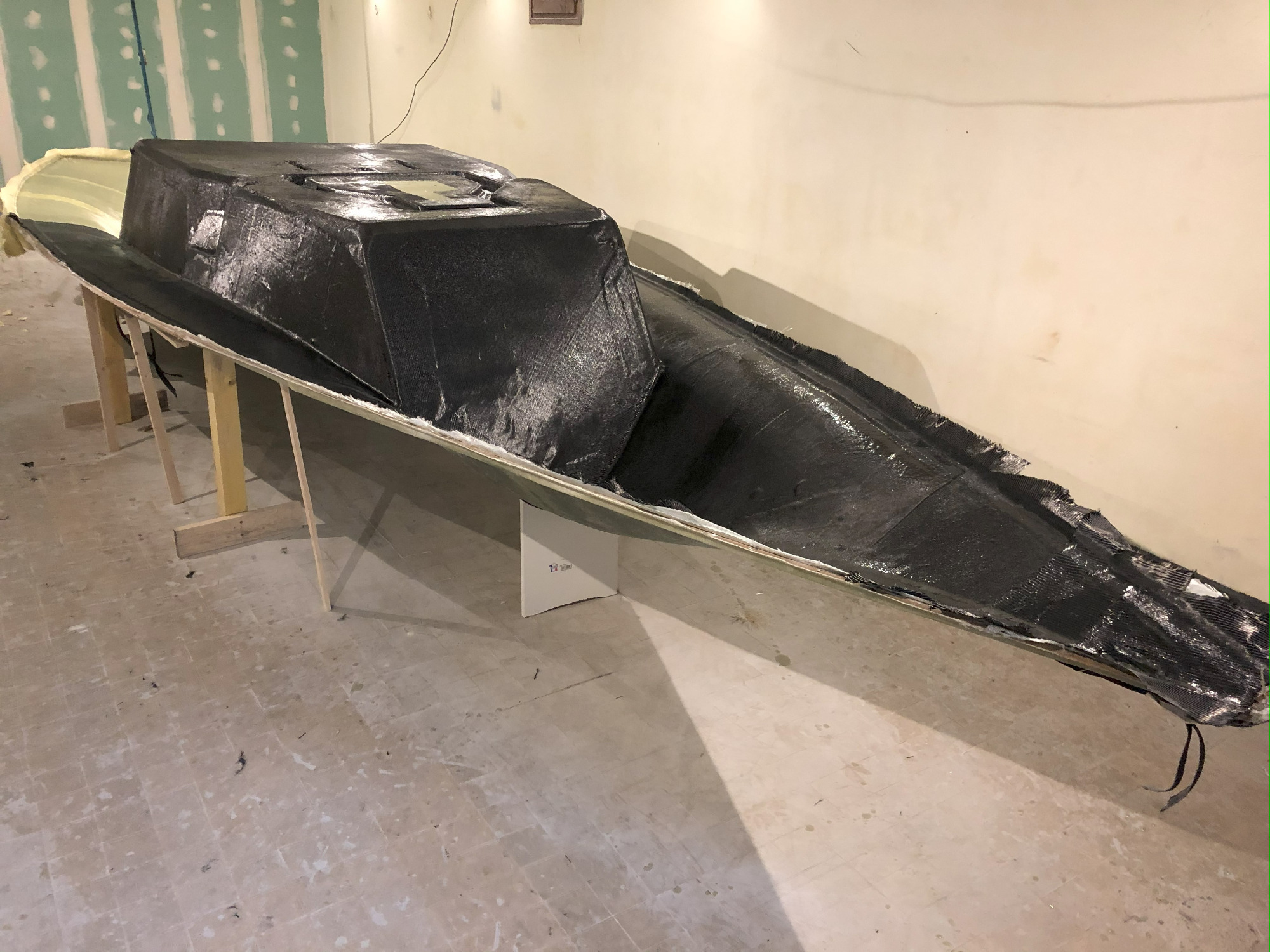

Etape 3 / Step 3

Assemblage de la coque / assembly of the hull

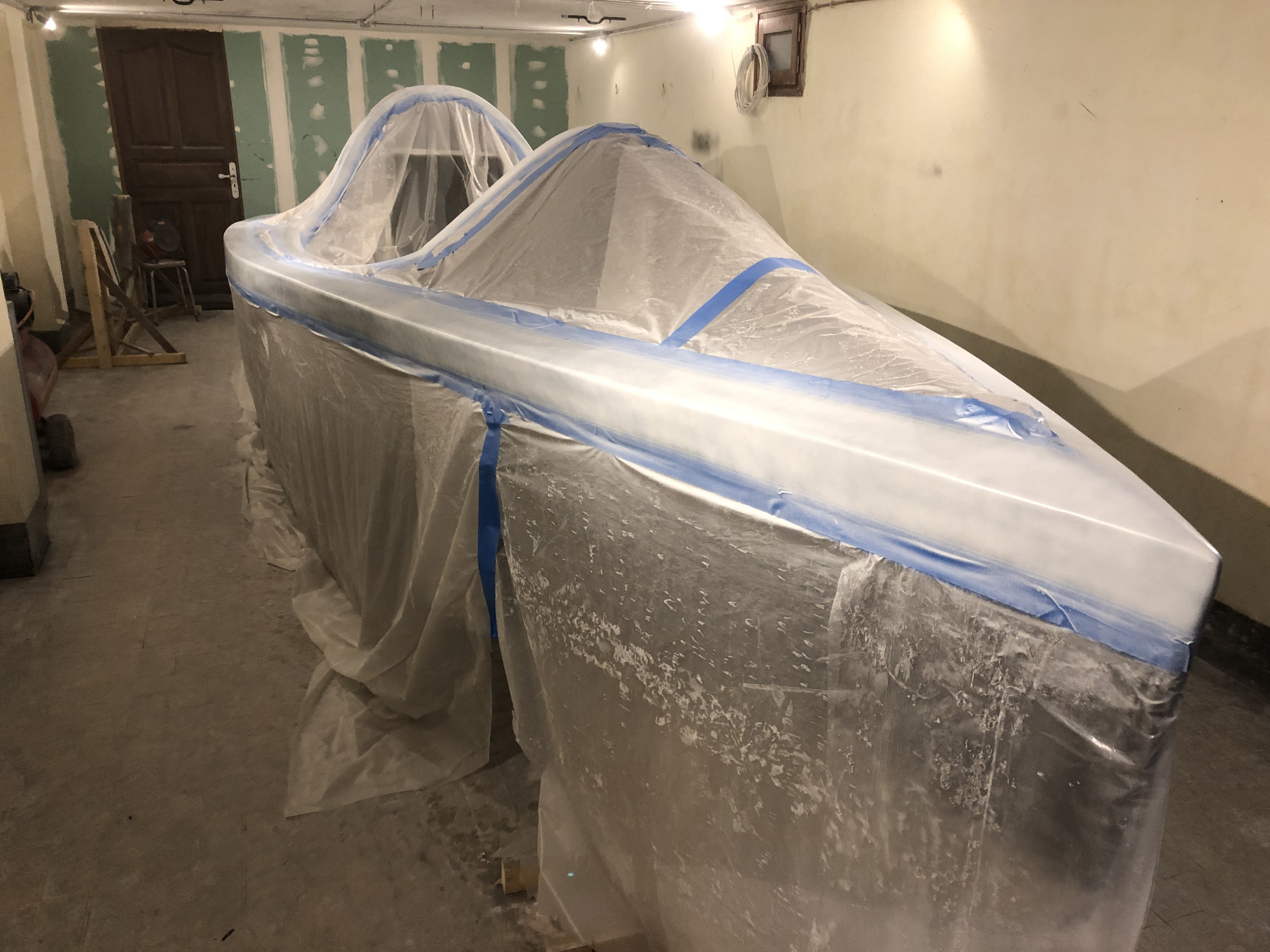

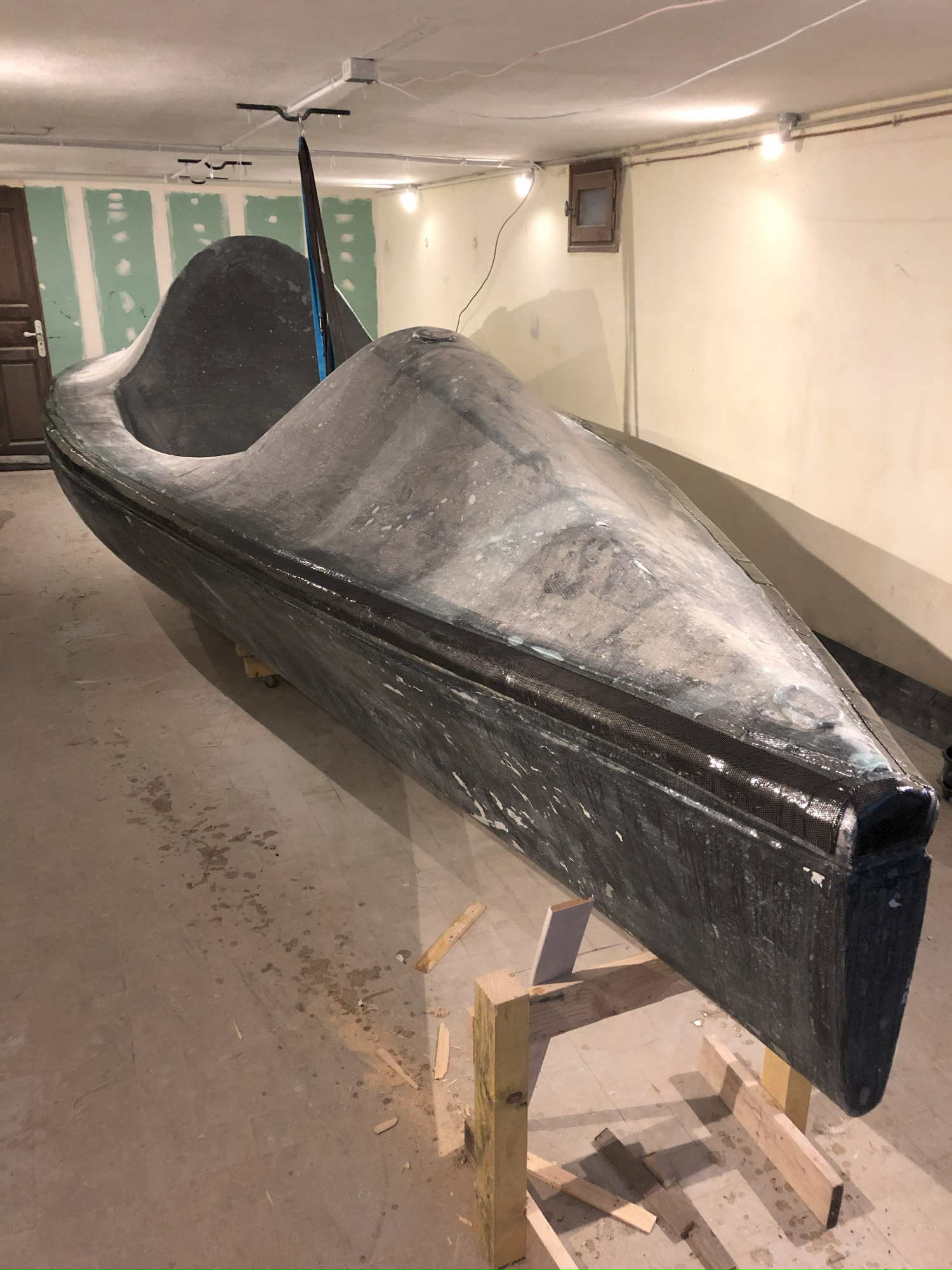

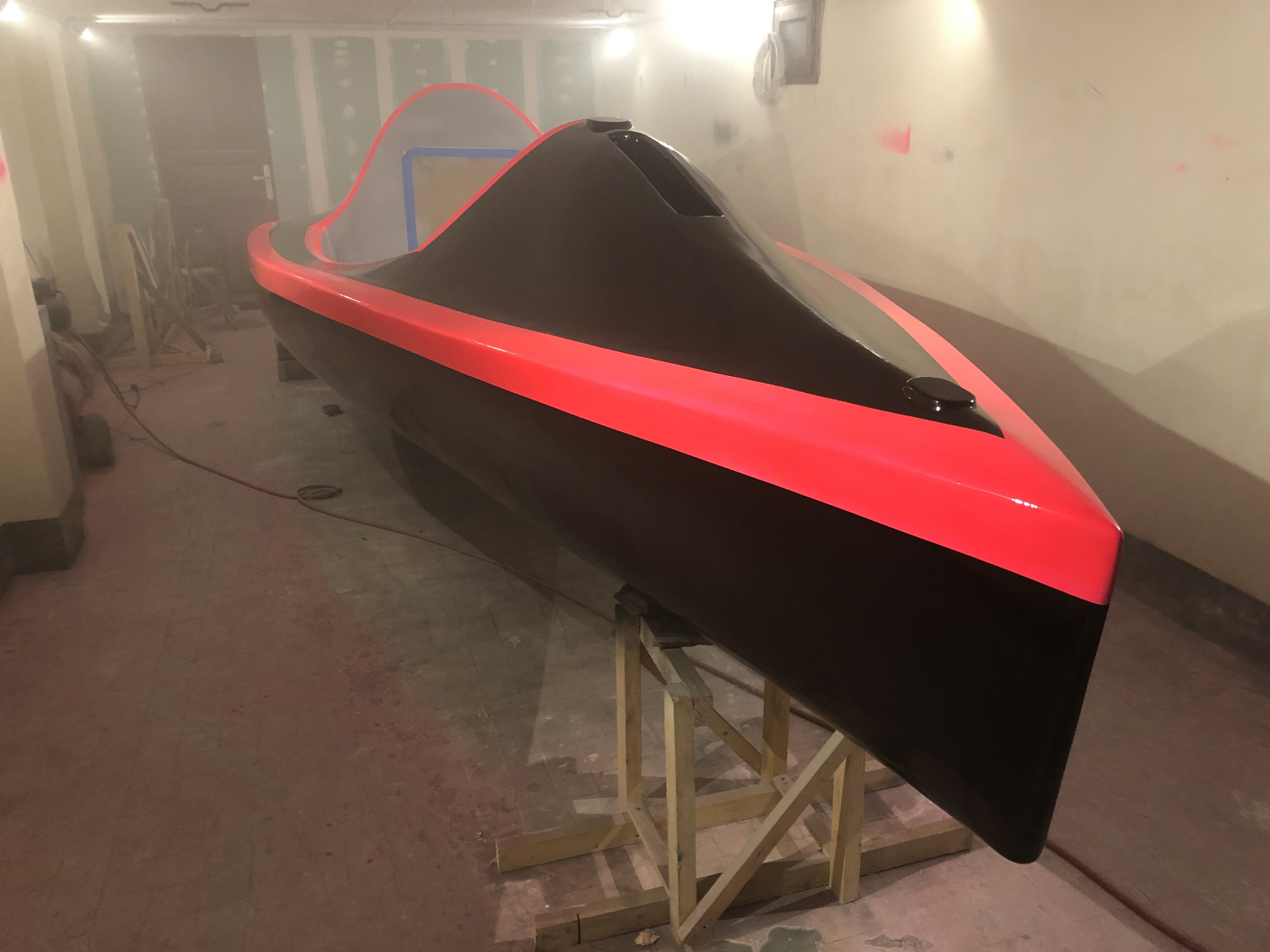

On rejoint les 2 parties de la coque par une reprise de stratification en carbone sous vide. Puis on rajoute le nez du bateau (crashbox), un peu de mastic et beaucoup de ponçage puis peinture !

We join the 2 parts of the hull by a layered stratification in carbon fiber under vacuum. Then we add the nose of the boat (crashbox), some putty with a lot of sanding then painting !

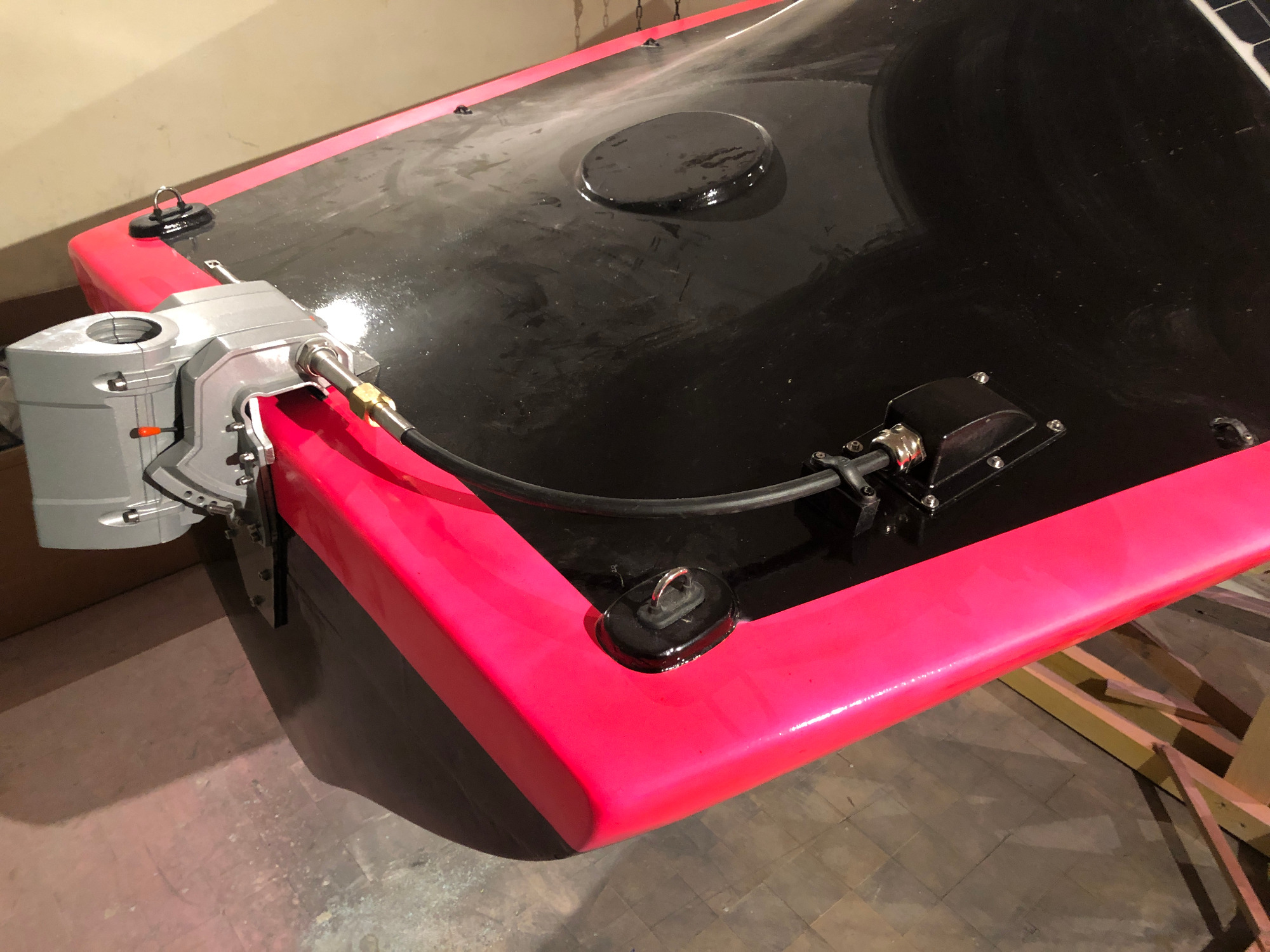

Quelques détails / Few details

Les différents accessoires du bateau sont réalisés puis assemblés sur la coque.
The various accessories of the boat are manufactured and assembled on the hull.

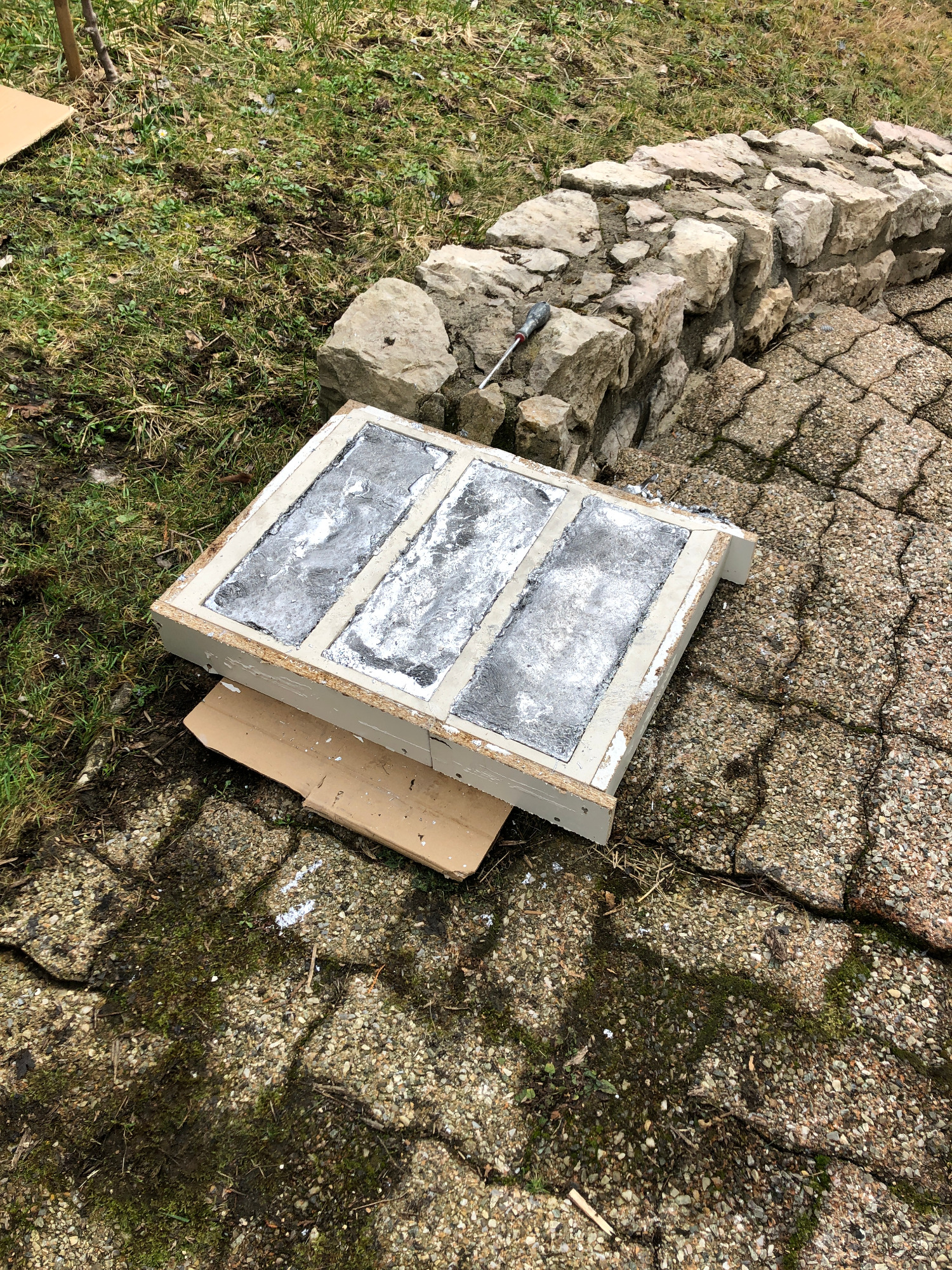

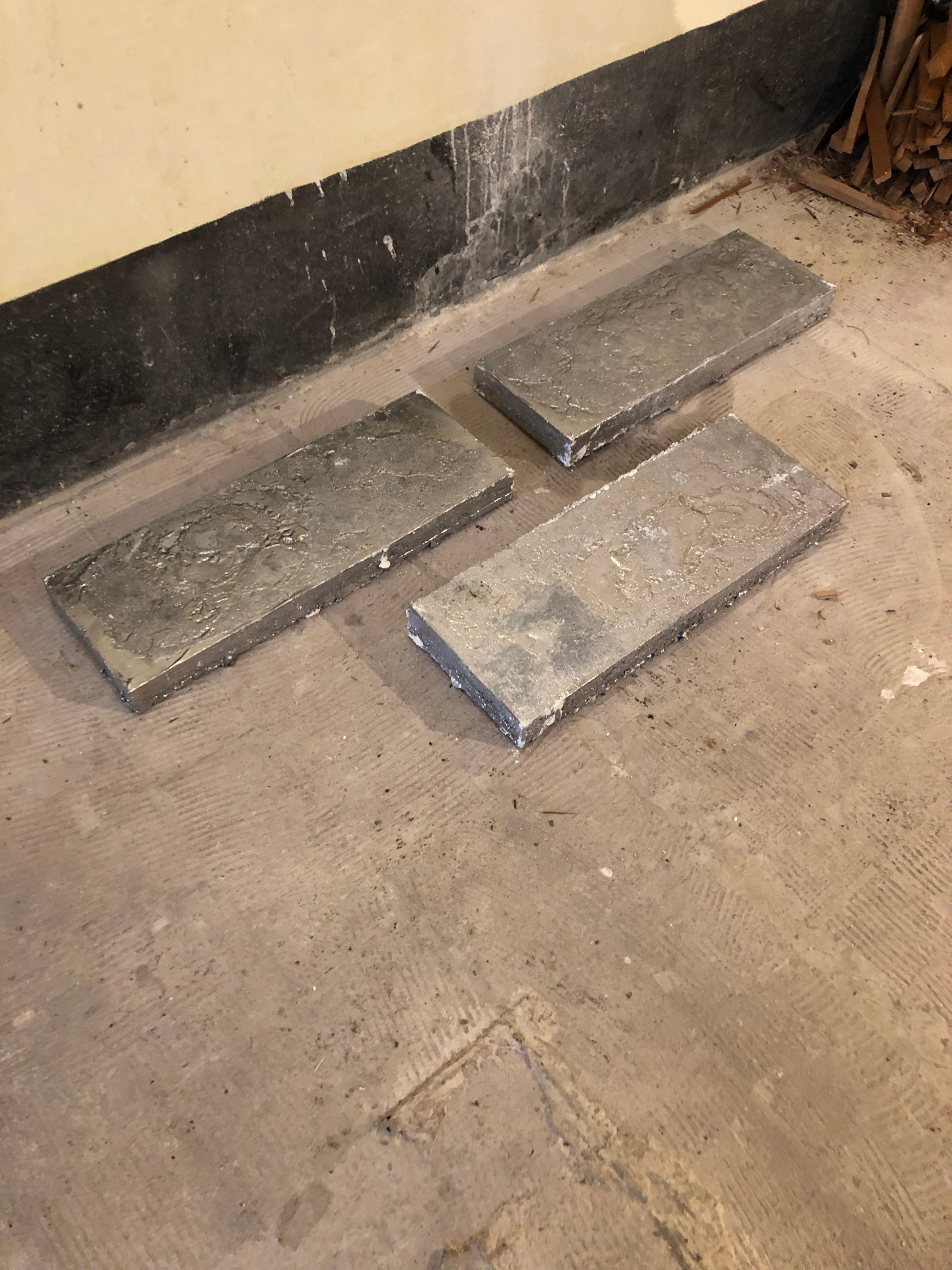

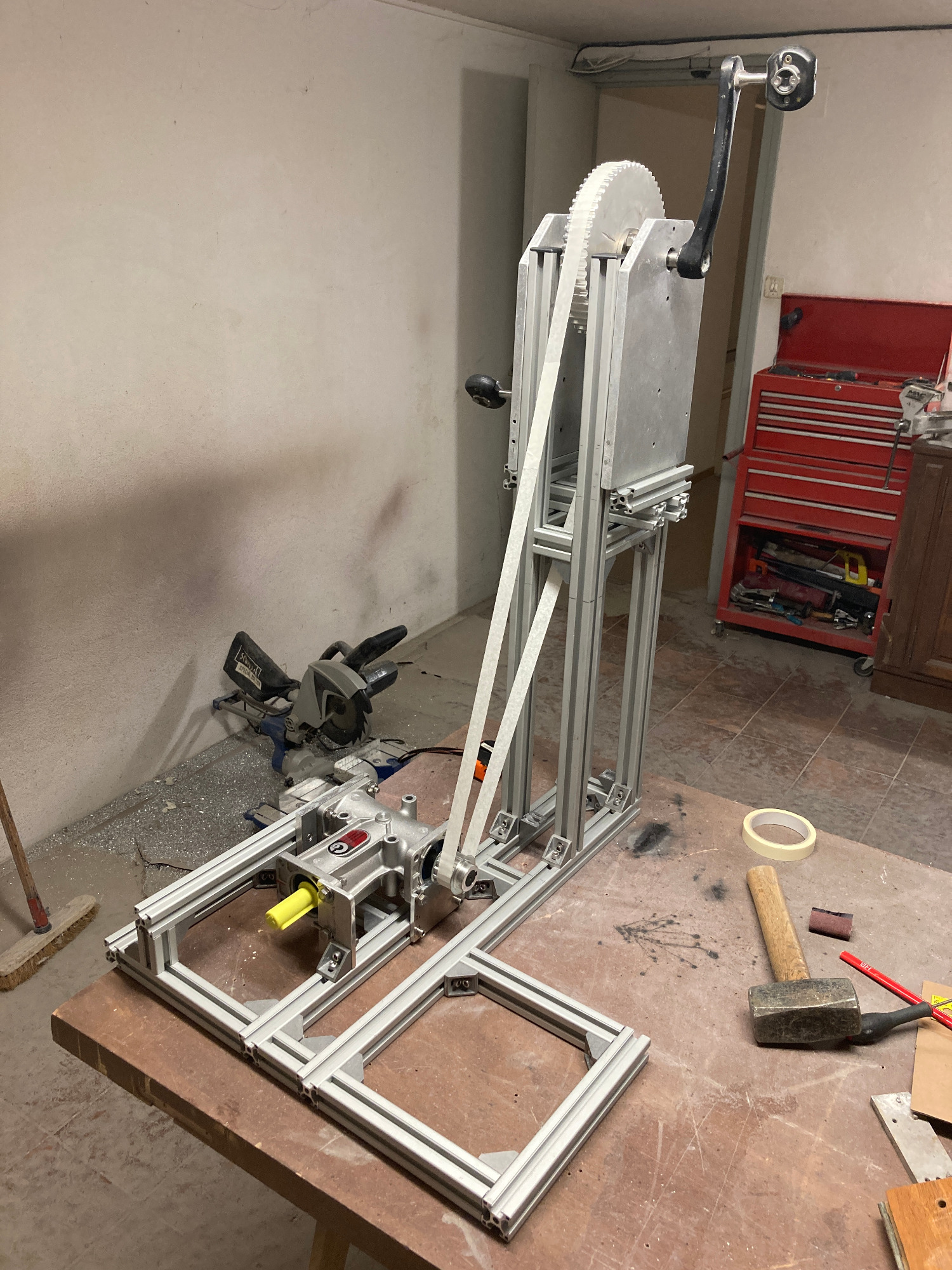

Lests de plomb moulés sur mesure (3x 25kg), impression 3D de certaines pièces, mécanisme du pédalier..

Lead ballasts are molded (3 x 25kg), 3D impression of some parts, pedal mechanism..
